Sonance Architectural BPS8 8" Dual Voice Coil BandPass Subwoofer
Architectural Series Medium Speakers are the perfect solution for large spaces, high ceilings, or anyone seeking higher volume levels without compromising the aesthetics of the designed space.
These speakers should be used in conjunction with the SonAmp DSP Amplifiers for optimal performance. Available as a 2 channel amp (DSP2-150) and an 8 channel Amp (DSP8-130) for multi speaker installs.
Features:

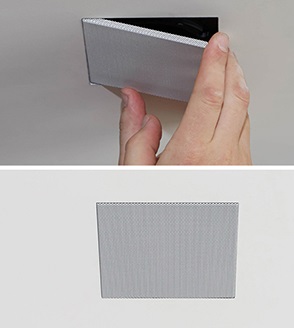

•Totally-flush and trim-less round or square aesthetic provides minimal visual distraction
•Patented mounting platforms deliver a high-quality installation with precision grille leveling
Technical Specifications:-
Woofer:
8” (203mm) dual voice coil, carbon fibre / Rohacell laminated cone with a rubber surround
Frequency Response:
30Hz – 90Hz ±3dB
Impedance:
6 ohms nominal; 4 ohms minimum
Power Handling:
150 watts maximum
Sensitivity:
90dB SPL (2.83V/1 meter)
Dimensions (H x W x D):
9 1/4” x 12 5/16” x 24” (235mm x 313mm x 610mm)
Port Tube Dims (Dia x L):
4 1/2” x 22” (114mm x 559mm)
Shipping Weight:
45 lbs (20.4kg) each
