The ISW is a low frequency reinforcement to the IS line. Two voice coils drive the diaphragm for unsurpassed invisible low end response.
Specifications:-
Woofer:
170 sq. in (1098 sq. cm) planar diaphragm, driven by two 2” (50mm) voice coils
Frequency Response:
35Hz – 150Hz ±3dB
Impedance:
8 ohms nominal
Power Handling:
100 watts RMS
Sensitivity:
90dB (1W/1 meter)
Dispersion:
140º hemispherical up to 10kHz
Finish:
Paper surface ready for up to 1/8” (3mm) flexible material* and paint
Overload Protection:
Self-resetting gel switch
Dimensions - Without Enclosure (WxHxD):
16-1/8” x 24-5/32” x 2” (409mm x 613.5mm x 51mm)

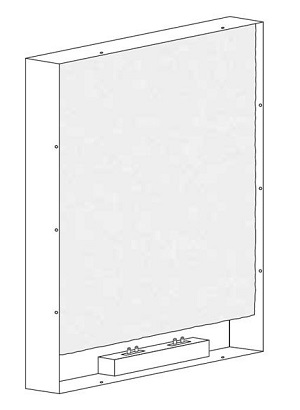

Dimensions - With Enclosure (WxHxD):
16-1/8” x 24-5/32” x 3-13/16” (409mm x 613.5mm x 97mm)
Cutout Dimensions (WxH):
14-1/4” x 22-1/4” (362mm X 565mm)
Shipping Weight:
13 lbs (5.85 kg) each
Environment Temperature:
0° - 125°F (-17.7 - 51.7°C)
