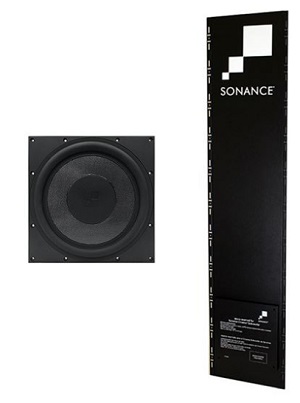

Sonance Reference Series R12SUB 12" Square In Wall subwoofer (each) NEEDS SON-92875 REAR ENCLOSURE
Created for AV Designers building systems that require the best surround sound available with a look that fits the space aesthetically, the Sonance Reference in-wall subwoofers provide a truly incredible sound without taking up floorspace. Engineered to give you an amazing cinema experience, Sonance Reference has options for in-wall, in-ceiling and cabinet speakers.
Aesthetics:
•Mix and match with Reference in-wall or in-ceiling speakers
•One-piece paintable grille to blend into your walls
•Available in 10" or 12" models to suit any sized room or available wall space
Performance:
•1.4lbs (.64kg) N38SH Neodymium Magnet
•Dual Spider Technology (DST) allows for increased movement
•4 1/2" (115mm) precision-aligned voice coil with 1 1/2" (30mm) winding height
Installation:
•Designed for installation during the construction or renovation process
•Enclosure is positioned behind the wall to deliver unprecedented performance with minimal visual intrusion
•Custom-tuned amplifiers ensure optimum sonic performance
v
Technical Specifications:-
Woofer: 12” (305mm) laminated carbon fibre
cone with a rubber surround
Frequency
Response: 25Hz - 250Hz ±3dB
Impedance: 8 ohms nominal
Sensitivity: 90dB (2.83V/1) meter
Required
Enclosure: VP12 SUB NC acoustic enclosure
(sold separately)
Required
Amplification: Sonance DSP2-750
(used in stereo setting)
Dimensions
Woofer (WxHxD): 12 3/8” x 12 3/8” x 3 5/32”
(314mm x 314mm x 80.2mm)
Dimensions
Wth Grille (WxHxD): 15” x 15” x 5/32”
(381mm x 381mm x 4mm)
Required: *Sonance R12SUB ENC
Subwoofer Enclosure (sold seperately)
