Absolute best sonic performance at all price points
•Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance
Latest high-tech driver and tweeter material technology
•Improved low frequency performance
•Improved driver cone materials
•Low diffraction woofer, and midrange tweeter design
•Pivoting midrange and tweeter for improved frequency response in off-axis installations
•Tweeter adjustment switch +/- 3dB
•Chambered midrange and tweeter design on all models
The chambered tweeter design does the following
•Lowers the resonance frequency of the tweeter
•Allows for a lower crossover frequency to the woofer
•Reduces the back pressure on the tweeter dome
•Reduces the distortion of the tweeter near the crossover frequency
Easier to install
•Easier to access Roto-Lock® screws
•Removed metal hang tabs
•One-piece paintable grille with peel and stick scrim cloth for easier painting
•Two piece toggle feet allows installation with double dry wall and thicker ceiling and wall materials
Specifications:-
Tweeter:
1" (25mm) cloth dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
Midrange:
4" (102mm) textured polypropylene cone with a rubber surround, pivoting
Woofer:
8" (203mm) textured polypropylene cone with a rubber surround
Frequency Response:
38Hz – 20kHz ±3dB
Impedance:
8 ohms nominal - 6 ohms minimum
Power Handling:
5 watts minimum - 125 watts maximum
Sensitivity:
90dB SPL (2.83V/1 meter)
Adjustments:
-

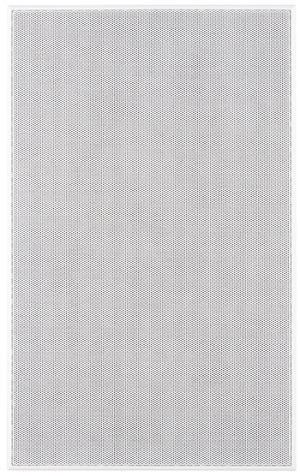

Grille:
Perforated steel
Dimensions (W x H x D):
10" x 16" x 3 7/8" (254mm x 406mm x 98mm)
Cut-Out Dimensions (W x H):
8 1/2" x 14 1/2" (216mm x 368mm)
Shipping Weight:
20 lbs (9kg) pair
