Masterclass DAC-4 Digital to Analogue Converter
The DAC-4 offers a well judged alternative to the plethora of other DAC’s available in the current market. With sound quality top of the list, our watchword ‘Rescuing music from technology’ could not be more appropriate. Instead of accepting and using the latest digital trends, we have produced a product meticulously engineered to play music. With our own conversion circuits and data reformatting, a near analogue experience can be enjoyed. The DAC-4 is without limitations and has no over sampling or digital filtering.
Technical Specification:-
Facilities:

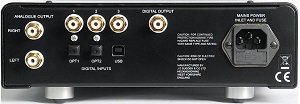

Outputs - One RCA stereo analogue, One digital coaxial
Input - Three SPDIF coaxial, two SPDOF optical

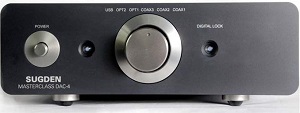

Front panel controls - One USB type B, Mains IEC socket Power switch, power lamp, input selector switch, digital lock lamp.
Output: 2.15Volts
Frequency response: 20Hz - 20kHz +/-1.50dB points
Signal to noise: > 80dB
Gross Weight: 5 Kg
Dimensions 90 x 250 x 330
Digital input: SPDIF 16-24 bit word length, with sample rates from 32 to 96kHz
Power consumption: 12 Watts
