The FBA 800 is a, Floating Bridge Power Amplifier operating in Pure Class A output mode...

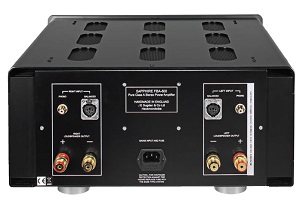

Power output is set at 40 watts / channel, the unit’s torroidal transformer is rated at 350. The Amplifier has the input facilities of: Balanced Input or Phono/asymmetric input, (both stereo pairs) Output is through a Stereo pair of Speaker Binding
Posts.
Selected optional facilities are:
Input sensitivity:
This can be reduced in one step by -6dB. This allows the user to adjust the balance/ matching of the Audio, chain, i.e. PreAmp – Power Amp,- Loudspeakers. The sensitivity is selected by Push Button, located on the front Panel.
Balanced or Phono/RCA input:
Is also exercised by a Push Button on the front Panel.

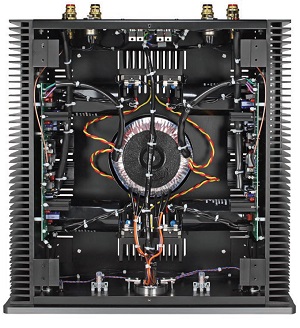

The FBA 800 Power Amplifier is a Stereo, Class A amplifier operating in the Bridged Mode with the Output earth Floating. Each channel consists of two amplifiers working as voltage amplifiers driving an output stage of Bridged Power transistors. The advantages are a low noise floor, better power output relative to the voltage rails (x2) and with the fixed current of the Class A mode, low output impedance and better load tolerance. The Amplifier has been designed for modern high efficiency loudspeakers.
The Power amplifier is D.C. coupled, with a servo lock, ensuring excellent low frequency detail. For safety purposes the amplifier includes a d.c. protection circuit. This circuit is statically switched using extremely low impedance Mosfet switching devices. This circuit also soft switches the Power Amp On and Off
The power supply is a low impedance design with a single custom made bi-filar wound transformer, with four separate windings, The main smoothing capacitors for the output stage are specially developed for professional audio applications with excellent ripple characteristics and long life. The Four power transistors per channel in the output stages are multi emitter devices with an output capability of 26 amps per device, .giving a tone burst potential of …….watts.
In the balanced mode the FBA800 operates in the full balanced mode from the input of the unit to the output. This is accomplished by using the two amplifiers per channel in the balanced mode.
For people who want to experience all the emotions of music this Amplifier is set completely in
Class A. No compromise has been taken with the build quality of its electronic circuitry, electronic
components, or case work. It includes gold plated circuit boards, and high quality internal silver wiring all designed to give long life and the ultimate musical performance.
It is always exciting when a new project reaches the performance stage and the FBA 800 amplifier through its development has continued to astound and excite through thousands of hours of tuning and development. The finished product is a precious link to simply more music.
