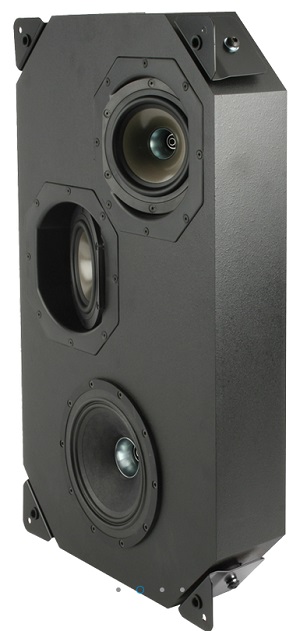

DEFINITION INSTALL iW60 EFX
Home Theatre Surround Sound Rear Channel In-Wall Loudspeaker with Dual Concentric Driver Array
Home theatre surround sound rear channel in-wall loudspeaker for HiFi, multi-zone music and AV systems
Provides audiophile performance for a wide range of installation applications, including home theatres, media rooms, boardrooms and high end marine interiors
100 Watts continuous, 400 Watts peak power handling delivers exceptional dynamics and realism
Dual Concentric driver technology provides class-leading coherence and point-source imaging
Dual Concentric array features 6.5” driver and 2 x 4” angled drivers to deliver unrivalled musical articulation and speech intelligibility
1” wide band tweeter technology provides enhanced intelligibility
Directional characteristics can be switched between dipole (cinema mode) and direct radiating pattern (music mode) by 12 Volt trigger signal
Highly efficient 90 dB/Watt sensitivity for ease of driving even with moderately powered amplifiers
Robust construction and performance allows use within commercial environments
Unique isolating mounting system minimises energy transfer to wall structure
Black painted enclosure with flush grille designed to blend seamlessly into the décor of any media environment or may be painted as required
High rigidity internally braced particle board cabinet minimises colouration from panel flexing for controlled and accurate bass performance
Optional pre-installation mounting frame for easy installation into standard stud partition wall
Spring loaded speaker wire connections aid easy of connection
Technical Specifications:-
Frequency Range 1: 74Hz - 27kHz
System Sensitivity (1W @1m) 2: 90dB (1W = 2.83V for 8 Ohms)
Nominal Coverage Angles: 90 degrees conical in music mode
120 degrees horizontal x 90 degrees in cinema mode
Coverage Angle: (1kHz to 6kHz) 120 degrees
Directivity Factor (Q): 3.5 averaged 1kHz to 6kHz
Directivity Index (DI): 5.5 averaged 1kHz to 6kHz
Rated Maximum SPL: Average: 110dB Peak: 116dB
Power Handling: Average: 100W Programme: 200W Peak: 400W
Recommended Amplifier Power: 100 - 200W @ 8 Ohms
Crossover: 1.6kHz
Nominal Impedance: 8 Ohms in music mode, 4 Ohms in cinema mode
Distortion:
10% Full Power (21.9V)
2nd Harmonic
250Hz: 1.84%
1kHz: 0.34%
8kHz: 0.91%
3rd Harmonic
250Hz: 0.30%
1kHz: 0.61%
8kHz: 0.17%
1% Full Power (6.9V)
2nd Harmonic
250Hz: 0.19%
1kHz: 0.40%
8kHz: 0.46%
3rd Harmonic
250Hz: 0.35%
1kHz: 0.32%
8kHz: 0.89%
Transducers:
Music Mode 1 x 165mm (6.50”) constant directivity Dual Concentric™
Cinema Mode 2 x 100mm (4.00”) Dual Concentric™ in dipole configuration
Enclosure:
11.5 litre (net total volume) closed and internally braced MDF enclosure with integral isolation mounting system
Finish: Textured black paint, White powder coated perforated steel grille with foam behind
Connectors: Gold plated spring terminals
Controls: Mode selection input (12VDC relay activated via Dinkle connector)
Polarity switch
Dimensions (HxWxD): 590 x 345 x 94mm (23.23 x 13.58 x 3.70")
Optional Accessory: Optional pre-installation frame available
Weight: 9.50kg (20.94lbs)
