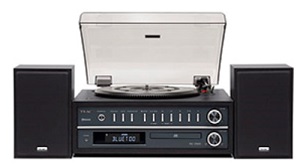

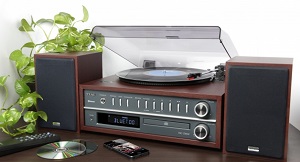

MC-D800 Turntable/CD System
Features at a glance:-
Bluetooth® Wireless Audio Streaming with Instant Paring (Conventional Pairing also supported)
Auto-return 3 speed Turntable with Sapphire stylus
CD Player supporting MP3/WMA files
USB Port for MP3/WMA Playback
Up to 32 tracks Program Play (CD/USB)
Repeat and Shuffle Play (CD/USB)
PLL Synthesized AM/FM Tuner
20AM + 20 FM Preset Memory
Dimmable Multi-function LC-Display with Digital Clock
On/Off Timer and Sleep Timer of up to 90 minutes
10W + 10W Output power
Muting
Line Input and Line Output on Rear
Headphone Out on Front
Detached 2-way Speakers with Rear Bass-reflex port
Remote Control
Replacement Sapphire Stylus available (STL-103)
Optional Diamond Stylus for SP records (SPL-102)
RoHS compliant
Technical Specifications:-
Bluetooth® section:-
Version: 2.1 +EDR
Class: Class2 (Range: approx. 10m / 33 ft.)
Supported Profile: A2DP, AVRCP
Supported Codec: SBC
Turntable section:-
Motor: DC Servo Motor
Drive Type: Belt Drive
Supported Speed: 33-1/3, 45, 78 RPM
Wow and Flutter: 0.35% or less
Signal-to-Noise Ratio: 50dB or more
Cartridge: Ceramic Stereo Type
Factory-installed Stylus: Sapphire (STL-103)
Replacement Stylus:
Sapphire Stylus for LP/EP STL-103 (3 pieces per package)
Diamond Stylus for SP SPL-102 (2 pieces per package)
Tuner section:-
Tuner type: PLL Synthesized Tuner
Number of Preset:s 20 AM + 20 FM
Frequency Range:
FM: 87.5MHz to 108.0MHz
AM: 530kHz to 1,710kHz
CD Player section:-
Supported Disc: CD-DA, CD-R, CD-RW
Supported Formats: PCM (CD-DA), MP3, WMA
Audio CD: 16bit, 44.1kHz
MP3
Format: .mp3
Sampling Frequency: 16k to 48kHz
Bit rate: 8k to 320kbps
WMA
Format: .wma (DRM not supported)
Sampling Frequency: 32k / 44.1k / 48kHz
Bit rate: 8k to 320kbps
USB section:-
USB Port: USB A
Supported Media: USB Flash Memory
Supported Formats: MP3, WMA
MP3
Format: .mp3
Sampling Frequency: 16k to 48kHz
Bit rate: 8k to 320kbps
WMA
Format: .wma (DRM not supported)
Sampling Frequency: 32k / 44.1k / 48kHz
Bit rate: 8k to 320kbps
Amplifier section:-
Output Power: 10W+10W (8 ohms)
Audio Input
AUX: RCA Pin Jack
Audio Output:-
AUX: RCA Pin Jack
Headphones Output:-
Connector: 3.5mm(1/8") Stereo Mini Jack
Speaker section:-
Type: Rear Bass-reflex Type
Units
Tweeter: 1.5 inch
Woofer: 3.5 inch
Impedance: 8 ohms
Speaker Cablee: 2.7 m / 9 ft. (Fixed to the Speaker)
Power: AC120V, 60Hz (US/Canada)
AC230V, 50Hz (UK/Europe)
Power Consumption 20W
Overall Dimensions:-
Main unit (W x H x D): 400 × 206 × 386 mm
15.7" x 8.1" x 15.2"
Speaker (W x H x D): 144 x 224 x 154 mm
5.7" x 8.8" x 6.1"
Weight
Main unit: 6.6 kg / 14.6 lbs.
Speaker: 2.8 kg / 6.1 lbs.
Accessories: Remote Control(RC-1316), AA Batteries x 2, 45rpm Adapter, Sapphire Stylus (installed), AM Loop Antenna, FM Wire Antenna, Owner's Manual, Warranty Card
Optional Parts
STL-103 Sapphire Stylus for LP/EP (3 pieces per package)
SPL-102 Sapphire Stylus for SP (2 pieces per package)
