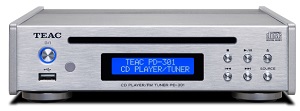

PD-301-X CD Player/FM Tuner
A musical gateway for the 301 Reference series, enabling CD, USB playback and FM radio listening from one component
The PD-301-X is a combination product in the Reference 301 range, comprising a CD player, USB memory player and FM tuner, and provides a versatile digital media gateway for your existing desk-top audio system.
Thanks to its painstakingly developed circuit design, the PD-301-X delivers superb analogue audio sound to your amplifier, while the coaxial and optical outputs deliver digital audio signals to your favorite DAC (digital to analogue converter), not only from CD and USB memory sticks but also from the FM tuner.
Thanks to its low-profile and small footprint design, the PD-301-X greatly expands the flexibility of your desktop audio system.
Features at a glance:-
Slot-load CD player supporting CD-DA, CD-ROM, CD-R and CD-RW discs
High performance BurrBrown PCM5142 32-bit D/A converter
Sleek, small footprint design
Built-in FM Tuner with 20 x FM station presets
Automatic CD Playback (On/Off selectable)
MP3, WMA playback from CD-ROM, CD-R and CD-RW
MP3, WMA, AAC, WAV playback from USB flash drive
Program playback (CD-DA only)
Shuffle and Repeat playback
Song title and artist name display (ID3 tag required)
Selectable Folder/File browse modes
USB Port for USB flash drive (USB A-type)
Coaxial and optical digital audio outputs
Analogue LINE audio output via RCA Pin
Card-type Remote Control
Full-metal body
Auto power-saving (On/Off selectable)
RoHS compliant
Technical Specifications:-
CD SECTION:-
Supported media: CD-DA, CD-ROM, CD-R, CD-RW* (8cm CDs not supported)
* Supports CD-DA format on CD-RW
Max number of files: 300 (including Folders)
Max number of folders: 50
Max number of layers: 16
USB SECTION:-
Supported USB devices: USB Mass Storage device class
Interface: USB2.0 (FULL-SPEED), USB1.0 (HIGH-SPEED), USB3.0 compatible
File system: FAT16, FAT32
Max number of files: 300 (including Folders)
Max number of folders: 50
USB bus power: DC 5V, max 500mA
SUPPORTED FILE FORMATS
WAV (USB only)
Extension: .wav, .WAV
Bit depth: 16-bit
Sampling frequency: 44.1k / 48kHz
MP3
Extension: .mp3, .MP3
Bit-rate: 32k to 320k bps and VBR
Sampling frequency: 16k / 22.05k / 24k / 32k / 44.1k / 48kHz
Format: MPEG1/2 Audio Layer-3
WMA
Extension: .wma, .WMA
Bit-rate: 32k to 320k bps and VBR
Sampling frequency: 8k / 11.025k / 16k / 22.05k / 32k / 44.1k / 48kHz
Format: WMA ver.9 standard (DRM not supported)
AAC (USB only)
Extension: .m4a, .M4A
Bit-rate: 8k to 320k bps and VBR
Sampling frequency: 8k / 11.025k / 12k / 16k / 22.05k / 24k / 32k / 44.1k / 48kHz
Format: MPEG4 AAC-LC (Audio stream)
TUNER SECTION
Band: FM
Frequency range: FM 76.0 to 108.9MHz
Number of presets: FM 20
AUDIO OUTPUTS
Analog LINE audio
Connector: RCA Pin × 1 pair
Impedance: 470Ω or less
Maximum output level: 2.0Vrms (1kHz, Full scale, 10kΩ loaded)
Coaxial digital audio
Connector: RCA Pin × 1
Output impedance: 75 Ω
Output level: 0.5Vp-p
Optical digital audio
Connector: TOS-link × 1
Sampling frequency: 44.1kHz
Bit depth: 16-bit
Power: AC 100 - 230V, 50/60Hz
Power consumption: 8W
Overall dimensions: 8.5" × 2.4" × 9.4" / 215 × 61 × 238mm (W×H×D)
Weight: 4.6 lbs. / 2.1kg
Accessories: AC adapter (GPE-152-120125W), Power cord for AC adapter, Remote control (RC-1323), AAA batteries × 2, RCA audio cable, FM cable antenna, User Manual (including Warranty)
AUDIO PERFORMANCE
Frequency response: 20Hz to 10kHz (–3dB, LINE out)
Signal-to-Noise ratio: 113dB (LINE out)
Total harmonic distortion: 0.005% (1kHz, LINE out)
