Seismic Isolation Support Corners
Eliminates structure-borne feedback between speaker and vibration sensitive equipment.
Enhances clarity throughout the whole frequency range.
Improves bass definition.
Produces a wider and deeper sound stage.
Neighbour friendly high level listening.

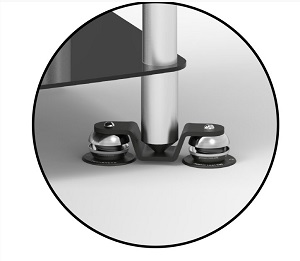

Seismic Sink Corners provide vibration isolation for almost any equipment rack, stand, platforms or speaker. Each Corner is a small platform suspended from two Seismic Load Cells™ on which the equipment legs or spikes are placed.
Designed to float your existing equipment rack in an unobtrusive manner, the Seismic Isolation Corners slip discretely under the bottom corners of your support furniture and bring you all the benefits of Seismic Isolation without major upheaval.
There are two types of Corners; one for flat feet (F) and one for spikes (S).
Level may be adjusted easily when fully loaded.
Four Corners units are able to hold equipment weighing up to 240kg.
The singular Seismic Load Cell is available with seven different weight capacities, ranging progressively from 1kg up to 32kg. Virtually any weight of equipment can be isolated.
The spring rates are as follows:
Spring / Min weight / Max weight / Colour Code
AAA / 0.5kg (1lb) / 1kg (2lb) / Brown
AA / 1kg (2lb) / 2kg (4lb) / Red
A / 2kg (4lb) / 4kg (9lb) / Orange
B / 4kg (9lb) / 8kg (17lB) / Yellow
C / 8kg (17lb) / 16kg (35lb) / Green
D / 16kg (35lb) / 32kg (70lb) /Blue
E / 32kg (70lb) / 64kg (140lb) / Silver
