Thin 425

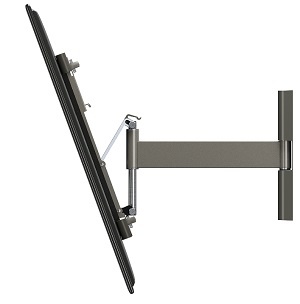

Thin TV bracket with turning and tilting function
The THIN 425 full motion TV bracket has a maximum weight capacity of 18 kg. Almost any TV, from 26" to 55" (66-140 cm), can be mounted flat against the wall with the THIN 425. The maximum turning angle is 120° and the max. tilting angle is 20°. The distance from the wall is 35 mm.
Mount your TV as flat against the wall as possible
Mount your TV only 3,5 cm from the wall
Smoothly turn your TV up to 120°
Easily level your TV even after installation
Technical Specifications:-
Min. screen size (inch):
26
Max. screen size (inch):
55
Min. vertical hole pattern (mm):
100
Max. vertical hole pattern (mm):
400
Min. horizontal hole pattern (mm):
100
Max. horizontal hole pattern (mm):
400
Min. distance to the wall (mm):
35
Max. distance to the wall (mm):
300
Max. weight load (kg):
18
Turn:
Up to 120°
Tilt:
Tilt up to 20°
Number of pivot points:
2
Number of arms:
1
Colour:
Black
Series:
THIN
TÜV certified:
Yes
Guarantee:
Lifetime
