11.1 HPC
The latest generation of Diamond speakers includes design elements never previously seen at such affordable price points. At the start of the design process, Wharfedale’s engineers went back to basics to create a loudspeaker system that would once again revolutionise this sector of the hi-fi market and bring high-end performance – and style – within reach of many music lovers, not just the wealthy few.
Wharfedale now extends the diamond 11 Series to cater for the home cinema experience, with the addition of the 11.1 HCP and 11.0 HCP.

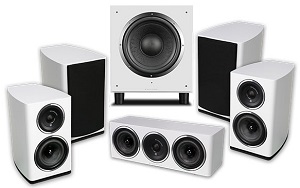

11.1 HCP Comprises of:
◾11.1 Bookshelf Speaker x2 (4 speakers in total)
◾11.CC Centre speaker
◾SW-10 Subwoofer
Technical Specifications:-
General description: 2-way bookshelf speaker
Bass driver: 4"(100mm) Woven Kevlar Cone
Midrange driver:
Treble driver: 1"(25mm) Soft Dome
Sensitivity (2.83V @ 1m): 87dB
Nominal impedance: 8Ω
Frequency response (+/-3dB): 55Hz ~ 20kHz
Dimensions (mm):-
Height (on plinth): 310mm
Width: 194mm
Depth (with terminals): (285+32)mm
Diamond 11.Cs:-
General description: 2-way centre speaker
Bass driver: 5"(130mm) Woven Kevlar Cone x 2
Midrange driver:-
Treble driver: 1"(25mm) Soft Dome
Sensitivity (2.83V @ 1m): 87dB
Nominal impedance: 8Ω
Frequency response (+/-3dB): 65Hz ~ 20kHz
Dimensions (mm):-
Height (on plinth): (170+10)mm
Width: 480mm
Depth (with terminals): (200+32)mm
SW-10 (Subwoofer):-
Drive Units: 1 x (10") 250mm cone long-throw
Frequency Response: 40 - 120Hz ±3dB
Amplifier Power Output: 200W
Peak Power Output: 350W
Line Input Sensitivity: 200mv for maximum output
Crossover Range: 30 - 150Hz
Inputs:-
Stereo Line In (2 x RCA Phono)
Mono (LFE) Line In (RCA Phono)
Input Impedance: Line Input 10kΩ
LFE 5kΩ
Signal-to-noise ratio (S/N): ≥ 85dB
Avg. Max Output @1m: 110dB
Features: Phase inversion, Auto on-off
Dimensions:- Height: (358+58)mm(with feet)
Width: 336mm
Depth: (366+15)mm
Net weight: 15kg
Finishes: Cabinet Rosewood /Walnut Pearl/White sandex/Blackwood Vinyl with Hi-gloss baffle
Accessories: IEC power cord
