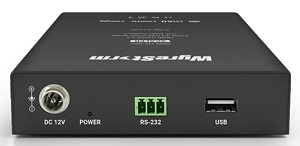

CON-H2-SCL - 4K 4:4:4 60Hz In-Line HDMI Scaler with Audio Breakout
An essential tool when mixing 4K & 2K screens on the same distribution system, the CON-H2-SCL enables in-line scaling of HDMI content. An HDMI signal from a source device, DA or matrix is converted so that it can be accepted by the connected display. Via a powerful scaling chip, 4K/60 4:4:4 or 4:2:0 can be down-scaled to as low as 480P; likewise, content can be up-scaled to 4K/60 4:4:4. Set up & configuration is done using a simple PC tool which is part of WyreStorm Management Suite V1.6. The software tool allows management of the scaling function and EDID via a simple interface.
Features:-
•Scales any incoming HDMI content to as low as 800x600 or up to 4096x2160
•Compatible with incoming 18Gbps HDMI content up to 2160p 4:4:4/60
•Converts HDR content and removes metadata for compatibility with all displays
•Converts HDCP encryption to match that of a connected display or projector
•Optical audio output for de-embedded source audio (2ch PCM)
•Setup & configuration via simple PC configuration tool (WyreStorm Management Suite v1.6 or higher)
•Powered by 12v DC power supply (US, UK, EU and AU PSU pins included)
•Mounting brackets included
•USB-3-pin phoenix cable required for setup (not included) - use p/n CAB-USB-PX1
•Full scaling list: Auto set (based on EDID from display) 4096x2160/60 4096x2160/30 4096x2160/25 4096x2160/24 3840x2160/60 3840x2160/50 3840x2160/30 3840x2160/25 3840x2160/24 1920x1200/60 1920x1080/60 1920x1080/50 1280x720/60 1280x720/50 1680x1050/60 1600x1200/60 1600x900/60 1440x900/60 1366x768/60 1360x768/60 1280x1024/60 1280x960/60 1280x800/60 1280x768/60 1024x768/60 800x600/60
Technical Specifications:-
AUDIO & VIDEO
Inputs 1x HDMI in: 19-pin type A
Outputs 1x HDMI Out: 19-pin type A
1x S/PDIF Out: TOSLINK (Digital Optical)
V
Audio Formats HDMI Pass-through: 2ch PCM
S/PDIF Out: De-Embed: 2ch PCM
Video Resolutions (Max)
1920x1080p @60Hz 12bit - HDMI 15m/49ft
3840x2160p @24Hz 10bit 4:2:0 HDR - HDMI 7m/23ft
3840x2160p @30Hz 8bit 4:4:4 - HDMI 7m/23ft
3840x2160p @60Hz 10bit 4:2:0 HDR - HDMI 5m/16ft
3840x2160p @60Hz 12bit 4:2:2 HDR - HDMI 3m/10ft
4096x2160p @60Hz 8bit 4:2:0 - HDMI 7m/23ft
4096x2160p @60Hz 8bit 4:4:4 HDMI 3m/10ft
Supported Standards DCI | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100
Maximum Pixel Clock 600MHz
Communication and Control
HDMI HDMI 2.0 | HDCP 2.2 | EDID
Inputs supports DVI/D and DisplayPort Dual-Mode (DP++) v1.3 with adapter (not included)
RS-232
1x RS-232: 3-pin Terminal Block - 3.5mm
USB 1x USB: USB-A | Firmware Updates Only
POWER
Power Supply 12V DC 2A
Max Power Consumption 8.38W
ENVIRONMENTAL
Operating Temperature 32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing
StorageTemperature -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing
Maximum BTU 29 BTU/hr
DIMENSIONS & WEIGHT
Rack Units/Wall Box < 1U
Height 25mm/0.99in
Width 110mm/4.34in
Depth 150.1mm/5.91in
Weight 0.476kg/1.05lbs
REGULATORY
Safety and Emission CE | FCC | RoHS | RCM
