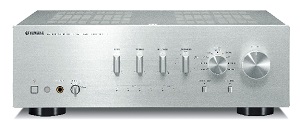

A-S801
With high sound quality ToP-ART circuitry and high stability construction, this integrated amplifier delivers superior musicality and powerful sound. And by incorporating advances like a USB DAC function, it fully supports the latest high resolution sound formats.
•USB DAC function supports 2.8MHz/5.6MHz DSD native resolution and PCM384kHz/32*bit reproduction
•* Windows support. Mac support is 24-bit.
•High efficiency ESS 32bit DAC (ES9010K2M)
•Digital signal indicator shows DSD and PCM playback formats and sampling frequencies
•High strength chassis contributes to high purity audio reproduction
• Double-bottom chassis for excellent vibration damping
•ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
•I/O (input to output) Direct Symmetrical Design
•ART (Anti-Resolution and Tough) Base
•Custom-made power transformer / 12,000uF block capacitors / Aluminium-extruded heat sinks
•160W x 2 (max), 100W x 2 (RMS) high power output
•CD Direct Amplification and Pure Direct
•Continuous Variable Loudness Control
•Gold-plated speaker terminals and RCA terminals
•Digital audio inputs for TV or Blu-ray Playerv
•Connection for YBA-11 Bluetooth Wireless Adapter
Technical Specifications:-
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz): 100 W + 100 W (0.019% THD)
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe): 160 W + 160 W
High Dynamic Power/Channel (8/6/4/2 ohms): 140/170/220/290 W
Damping Factor: 240
Frequency Response: 10 Hz-100 kHz +/-1.0 dB
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz): 0.019% (50 W/8 ohms)
Signal-to-Noise Ratio (CD): 99dB (input shorted, 200 mV)
Audio In / Out: 8 / 2
Digital Input: Yes (optical / coaxial)
USB Input: Yes (type B)
Subwoofer Outv: Yes
DC out: Yes
Pure Direct: Yes
ToP-ART: Yes
Switchable CD Direct Amplification: Yes
Standby Power Consumption: 0.5W
Power Management (Auto Power Standby): Yes
Dimensions (W x H x D): 435 x 152 x 387 mm; 17-1/8” x 6” x 15-1/4”
Weight: 12.1 kg; 26.7 lbs.
