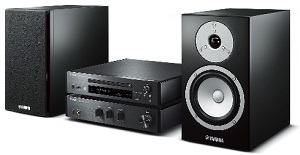

Casual, yet elegant. A truly HiFi system designed
and fine-tuned for optimum performance.
MusicCast is a new revolution in network audio, use all your MusicCast products together or separately, it’s completely up to you. Control it, all from one app, designed to be intuitive, quick and simple to use. Use a soundbar, a wireless speaker, an AV Receiver, HiFi audio whichever suits you best, mix and match then expand your MusicCast system as time goes on. All new from Yamaha, the MusicCast system brings everything to everywhere for everyone.
MusicCast employs a high performance wireless network to deliver music and audio enjoyment. It can stream digital music content from your smartphone, PC or NAS to other MusicCast devices in your home. Audio content from Bluetooth®-connected smartphones or tablets can also be streamed to MusicCast devices in multiple rooms.
Technical Specification:-
CENTER UNIT:-
Bluetooth Version/Profile
Ver. 2.1 + EDR / A2DP, AVRCP ; [Audio Codec] SBC, AAC
Bluetooth Maximum Communication Range
10 m / 32.8 ft. 10 in. (without interference)
Disc Type
CD, CD-R, CD-RW (Audio CD, MP3, WMA)
USB
Yes
Internet Radio
vTuner
Wi-Fi
Yes
AirPlay
Yes
DLNA
Yes
File Format
MP3, WMA, MPEG4, AAC, WAV(*1), FLAC(*1), AIFF(*1), ALAC(*2) --- (*1) 192 kHz / 24bit; (*2) 96 kHz / 24 bit
Ethernet
Yes
Tuner
DAB, DAB+, FM
Preset Memory
DAB x 30, FM x 30
Headphone Jack
Yes
Digital Audio Input: Optical
Yes
Total Harmonic Distortion(CD to Sp Out, 20 Hz-20 kHz)
0.05 % (SP Out, 1 kHz, 6 ohms)
Dynamic Range
100dB
Output Power/Channel (6 ohms, 1 kHz, 10% THD)
65 W + 65 W
[Player] Harmonic Distortion + Noise (1 kHz)
0.003%
[Player] Dimensions (W x H x D)
314 x 70 x 338 mm; 12-3/8” x 2-3/4” x 13-1/4”
[Player] Weight
2.9 kg; 6.5 lbs.
[Receiver] Dimensions (W x H x D)
314 x 70 x 342 mm; 12-3/8” x 2-3/4” x 13-1/2”
[Receiver] Weight
3.3 kg; 7.3 lbs.
SPEAKER SYSTEM:-
Type
2-way bass-reflex bookshelf
Woofer
13 cm (5-1/4”) cone
Tweeter
3 cm (1-1/4”) soft dome
Input Power (Max/Nominal)
110 W / 60W
Frequency Response
55 Hz – 40 kHz
Sensitivity
85 dB / 2.83 V, 1 m
Crossover Frequency
4 kHz
Impedance
6 ohms
Dimensions (W x H x D)
176 x 310 x 297 mm; 6-7/8” x 12-1/4” x 11-3/4”
Weight
4.6 kg; 9.9 lbs.
