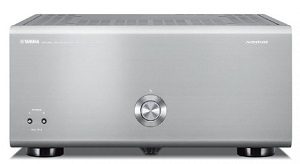

MX-A5200
Experience the ultimate in home theatre performance and versatility with the MX-A5200 AVENTAGE power amplifier. The 11-channel system exemplifies the pursuit for purity of sound and unsurpassed flexibility.
•AVENTAGE 11-channel power amplifier
•Supports Bridge-Tied Load (BTL) configuration for 2 x front channels
•27,000 uF custom block capacitors
•Bi-amping capability with channel selector
•High-quality gold-plated speaker terminals
•Noise-resistant XLR balanced connections
AVENTAGE Separate Components
AVENTAGE Separate Components represent the pinnacle in exhilarating home entertainment.
In pursuit of the ultimate in home cinema, Yamaha establishes a new benchmark in performance and innovation.
Introducing the CX-A5200 pre-amplifier and MX-A5200 power amplifier.
Power and Presence
The MX-A5200 offers 11 x discrete channels of amplification with flexible configuration options - delivering an impressive combination of power and quality.
Enjoy the flexibility of a multi-zone system or immerse yourself in exhilarating surround sound using any combination of 11-channels.
Ultimate Performance with BTL
To further enhance power capacity, the MX-A5200 supports Bridge Tied Load (BTL) configuration for the front 2 channels. This allows for a major improvement to the front speaker performance.
Uncompromising Design
As part of its uncompromising design, the MX-A5200 boasts a specially designed chassis to maximise rigidity and eliminate the effects of vibration.
The MX-A5200 employs a double bottom construction consisting of vibration control plates made of 1.6 mm steel - echoing that of the legendary Z11 AV receiver. In order to support the heavy heat sinks and other components, a left-right independent construction strengthened by a rigid-frame structure is utilised. The bottom frame reduces the transmission of vibration produced by the large power supply transformer and heat sinks.
The MX-A5200 also incorporates a heavy insulator that blocks external vibration.
Perfectly Symmetrical
Precisely planned, circuit-routed and designed with a symmetrical power amplifier layout, the MX-A5200 achieves ideal channel separation with left and right sides being both physically and electrically isolated.
The design also greatly improves signal-to-noise ratio and achieves an expansive sound stage.
Effortless Performance
The MX-A5200 utilises a high-output, large toroidal transformer combined with 2 specially developed high-capacity block capacitors to deliver massive power with generous headroom.
Also, energy loss is minimised and ensures effortless reproduction of sound sources.
Superior Connection

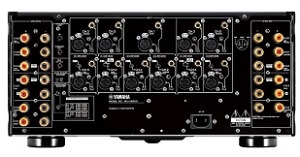

The rear of the MX-A52000 features high-quality, gold-plated terminals that are compatible with Y plugs (spade connectors) for optimal connections with speakers.
Heavy-duty Bottom Plate
Stabilising the chassis is the key to enhanced performance and deep, sinking sound. The MX-A5200 achieves this by employing a thick bottom plate which acts to steady the entire structure and achieve optimal sound.
Balanced XLR Connections
When connecting AV components, electrical noise can be introduced - a result of the connections between them and also from other sources of external noise.
To combat this inherent issue, the MX-A5200 utilizes balanced connections for all 11-channels - the same type found in professional audio applications.
Additionally, the alternative RCA unbalanced connection uses a ground sensing transmission method that achieves simple balanced transmission.
Technical Specifications:-
AV RECEIVER
Amplifier Section:-
Channel: 11
Rated Output Power (1kHz, 1ch driven):
290 W (4 ohm, 0.9% THD [European Model]), 230 W (6 ohm, 0.9% THD), 190 W (8 ohm, 0.9% THD)
Rated Output Power (1kHz, 2ch driven):
170 W (8 ohm, 0.9% THD)
Rated Output Power (1kHz, 2ch driven, bridged connection):
240 W (8 ohm, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven):
170 W (6 ohm, 0.06% THD), 150 W (8 ohm, 0.06% THD)
Rated Output Power (20Hz-20kHz, 2ch driven, bridged connection):
200 W (8 ohm, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA):
280 W (6 ohm, 10% THD), 230 W (8 ohm, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms):
190 / 250 / 350 / 500 W
Audio Features:-
A.R.T. Wedge: Yes
BTL connection: Yes
Bi-amp capability: Yes
Digital ToP-ART / High Current Amplification: Three-stage Darlington Power Stage
Current Feedback Amplifier Circuit: Yes
Connectivity: Analog Audio Input/Output: XLR Balance: 11 / 0, RCA Unbalance: 11 / 0
Zone Control: +12V Trigger Output: Out:1, Trigger in / Through: 1 / 1
General:-
Standby Power Consumption (IR only): 0.1 W (typical)
Auto Power Standby: Yes (ON / OFF switch)
Dimensions (W x H x D): 435 x 211 x 464 mm; 17-1/8” x 8-1/4” x 18-1/4”
Weight: 26.4 kg; 58.2 lbs.
Power Consumption: 650 W
