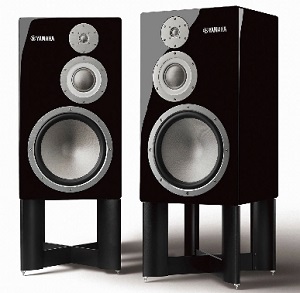

NS-5000
Introducing Yamaha’s flagship 3-way bookshelf speaker system, setting a new standard in performance and quality by which all other Hi-Fi speakers should be judged.
•Newly developed diaphragms boast acoustic velocity comparable to that of beryllium
•Newly developed R.S. (Resonance Suppression) Chambers suppress unwanted resonance in the mid and high ranges
•30 cm (12”) 3-way bookshelf design draws on the tradition of the legendary NS-1000M
•Carefully crafted laminated plywood enclosure made of Japanese white birch from the island of Hokkaido
•Newly developed Acoustic Absorber eliminates sound-absorbing material to revive the original presence of the music
•Glossy black piano finish provides improved signal-to-noise performance — and adds to the luxurious joy of ownership
•Frequency-dividing Network
Technical Specifications:-
Type:
3 way Bookshelf Bass-reflex Type
Woofers:
30 cm (12") cone type
MidRange Driver:
8 cm (3-1/4") dome type
Tweeter:
3 cm (1-1/4") dome type
Frequency Response:
26 Hz-40 kHz (-10dB), -100 kHz (-30dB)
Nominal Input Power:
200 W
Maximum Input Power:
600 W
Sensitivity:
88 dB / 2.83 V/1 m
Crossover Frequencies:
750 Hz / 4.5 kHz
Impedance:
6 ohms (minimum 3.5 ohms)
Dimensions (W x H x D):
395 x 690 x 381 cm; 15-1/2” x 27-1/8” x 15” (with speaker terminals)
Weight:
35.0 kg; 77.2 lbs. / unit

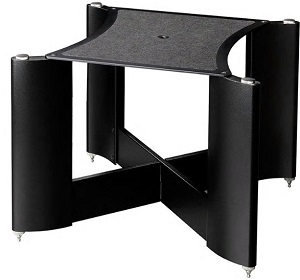

SPS-5000
Speaker stand specifically for the NS-5000, featuring solid aluminium legs for exceptional stability and acoustic design for optimum sound.
Dimensions (W x H x D):
393 × 304 × 376 mm; 15-1/2” x 12” x 14-3/4” (with spikes), 393 x 285 x 376 mm; 15-1/2" x 11-1/4" x 14-3/4" (without spikes)
Weight:
8.0 kg; 17.6 lbs./unit
