Crossing the border between HiFi and theatre sound reproduction, deep, tight bass brings out the individuality of the main speaker system. Yamaha’s new subwoofer proudly brings you 1kW of output power.
High strength, heavy enclosure with twisted flare port
1kW digital power amplifier using the latest digital devices and a huge analogue power supply
All-new 30cm (12”) subwoofer combining a double magnet and a Kevlar composite cone
High-class external design with a choice of normal or piano finish

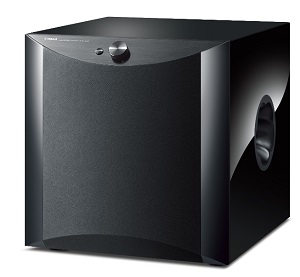

The NS-SW1000 is a new Yamaha high-end subwoofer faithfully utilising Advanced YST ll (Yamaha Active Servo Technology ll) polished over the span of a quarter century to achieve highly musical reproduction of exceedingly low bass frequencies. The main themes in developing this model were completely achieving “both high sound quality and high output power” and “both HiFi and theatre reproduction”. While maintaining the huge power output and sound levels of the previous YST-SW1500, the NS-SW1000 aims to deliver uncompromisingly delicate musical expression that brings out the individuality of the main speaker. For that reason, maximum priority was given to creating an extremely efficient speaker within which to employ the unique A-YSTII technology. The foundation for this is the massive 19kg (41.9 lbs) high strength, heavy enclosure around the 30cm (12”) woofer unit with double magnets, the all-new Yamaha digital amplifier IC, and the high 1kW output power amplifier incorporating a large analogue power supply. These three elements fuse an extraordinary scale with traditional musicality to bring you deep, tight, authentic bass that’s perfect for watching movies, listening to multi-channel audio or music videos, or for bringing dramatic richness to high-end audio systems.
Technical Specification:-
Driver
30 cm (12”) cone
Output Power
1,000 W
Frequency Response
18–160 Hz
Advanced YST
Yes
Twisted Flare Port
Yes
Auto Standby
Yes
Standby Power Consumption
0.3 W
System Connector
Yes
Dimensions (W x H x D)
443 x 463 x 522 mm; 17-1/2” x 18-1/4” x 20-1/2”
Weight
42.6 kg; 93.9 lbs.
