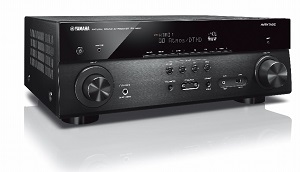

RX-A680
7.2-channel AV receiver with superb sound quality and the latest network functions for an amazing AV experience.
•7-channel powerful surround sound
• 80 W per channel (6 ohms, 20 Hz-20 kHz, 0.09% THD, 2-ch driven)
• 115 W per channel (6 ohms, 1 kHz, 0.9% THD, 1-ch driven)
• 145 W per channel (6 ohms, 1 kHz, 10% THD, 1-ch driven)
•Ability to add wireless surround speaker/s* (*MusicCast 20 or MusicCast 50)
•Dolby Atmos® and DTS:X™ support
•Amazon Alexa and Google Assistant voice control compatibility* (*Availability varies by region)
•Anti Resonance Technology (A.R.T.) Wedge
•Aluminium front panel
•YPAO™ sound optimisation
•Music streaming services built-in
•HDMI® (4 in / 1 out) with Dolby Vision™ and Hybrid Log-Gamma
•Phono input for vinyl playback
Technical Specifications:-
Amplifier Section:-
Channel: 7.2
Rated Output Power (1kHz, 1ch driven): 115 W (6 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven): 80 W (6 ohms, 0.09% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA): 145 W (6 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms): - / 140 / 170 / 190 W
Surround Sound Processing:-
CINEMA DSP: Yes (3D)
DSP Programs: 17
Dialog Level Adjustment: Yes
Virtual Presence Speaker: Yes
Virtual Surround Back Speaker: Yes
Dialogue Lift: Yes
SILENT CINEMA / Virtual CINEMA DSP: Yes (Virtual CINEMA FRONT)
Dolby Atmos: Yes
Dolby TrueHD: Yes
Dolby Digital Plus: Yes
Dolby Surround: Yes
DTS:X: Yes
DTS-HD Master Audio: Yes
Audio Features:-
File Format:
MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz
Compressed Music Enhancer: Yes (incl. enhancer for Bluetooth®)
YPAO sound optimization: Yes
Adaptive DRC (Dynamic Range Control): Yes
Initial Volume & Maximum Volume Setting: Yes
A.R.T. Wedge: Yes
Bi-amp capability: Yes
Audio Delay: Yes (0-500 ms)
DA Converter: Burr-Brown 384 kHz / 32-bit DAC x 4
Video Features:-
4K Ultra HD Pass-through and upscaling: Yes (4K / 60p, 4:4:4)
HDMI 3D passthrough: Yes
HDMI eARC: Yes (via future firmware update)
HDMI Audio Return Channel: Yes
HDMI upscaling: Yes (HDMI® to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync: Yes
Connectivity:-
MusicCast Surround: Yes
HDMI Input/Output: 4 / 1 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
HDMI CEC: Yes
USB Input: USB Memory, Portable Audio Player
Network Port: Yes
Wi-Fi: Yes (2.4 / 5 GHz)
AirPlay: Yes
Bluetooth: Yes (SBC / AAC)
Front AV Input: USB / Mini Jack
Digital Audio Input/Output: Optical: 1 / 0
Digital Audio Input/Output: Coaxial: 2 / 0
Analog Audio Input/Output: 5 (front 1) / 0
Composite Video Input/Output: 3 / 1
Preout: Subwoofer (2 x mono)
Headphone Output: 1
Tuner Section:-
FM/AM Tuner: Yes (FM only)
DAB Tuner: Yes (Availability varies by region.)
User Interface:-
On-screen display: Yes (colour OSD)
SCENE: SCENE (4 sets)
App Control: Yes (iPhone / iPad / Android phone / tablet)
Remote Control Unit: Yes
Zone Control:-
Zone B Output: Yes
General:-
Standby Power Consumption (IR only): ≤ 0.1W
Auto Power Standby: Yes
ECO mode: Yes
Dimensions (W x H x D): 435 x 161 x 330 mm (with antenna: 435 x 235.5 x 330 mm); 17-1/8” x 6-3/8” x 13” (with antenna: 17-1/8” x 9-2/8” x 13”)
Weight: 8.3 kg; 18.3 lbs.
