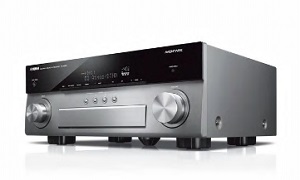

RX-A880
7.2-channel AVENTAGE model features enhanced sound quality, high power and exceptional functionality.
•7-channel powerful surround sound
•--- 100 W per channel (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2-ch driven)
•--- 160 W per channel (4 ohms, 1 kHz, 0.9% THD, 1-ch driven)
•--- 160 W per channel (8 ohms, 1 kHz, 10% THD, 1-ch driven)
•Ability to add wireless surround speaker/s* (*MusicCast 20 or MusicCast 50)
•YPAO™-R.S.C. sound optimisation with multi-point measurement
•Amazon Alexa and Google Assistant voice control compatibility* (*Availability varies by region)
•Anti Resonance Technology (A.R.T.) Wedge
•Aluminium front panel
•MusicCast multi-room technology
•Music streaming services built-in
•HDMI® (7 in / 2 out) with Dolby Vision™ and Hybrid Log-Gamma
•Phono input for vinyl playback
Technical Specifications:-
Amplifier Section:-
Channel: 7.2
Rated Output Power (1kHz, 1ch driven): 160 W (4 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven): 100 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA): 160 W (8 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms): 130 / 170 / 195 / 240 W
Surround Sound Processing:-
CINEMA DSP:Yes (3D)
DSP Programs: 17
Dialog Level Adjustment: Yes
Virtual Presence Speaker: Yes
Virtual Surround Back Speaker: Yes
Dialogue Lift: Yes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP: Yes (Virtual CINEMA FRONT)
Dolby Atmos: Yes
Dolby TrueHD: Yes
Dolby Digital Plus: Yes
Dolby Surround: Yes
DTS:X: Yes
DTS-HD Master Audio: Yes
Audio Features:-
File Format:
MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Pure Direct: Yes (with video on mode)
Compressed Music Enhancer: Yes (incl. enhancer for Bluetooth®)
YPAO multi-point measurement: Yes (R.S.C)
YPAO Volume: Yes
Adaptive DRC (Dynamic Range Control): Yes
Initial Volume & Maximum Volume Setting: Yes
A.R.T. Wedge: Yes
Bi-amp capability: Yes
Audio Delay: Yes (0-500 ms)
DA Converter: Burr-Brown 384 kHz / 32-bit DAC x 4 for main zone
Video Features:-
4K Ultra HD Pass-through and upscaling: Yes (4K / 60p, 4:4:4)
HDMI 3D passthrough: Yes
HDMI eARC: Yes (via future firmware update)
HDMI Audio Return Channel: Yes
HDMI upscaling: Yes (Analogue to HDM® / HDMI to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync: Yes

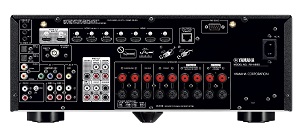

Connectivity:-
MusicCast Surround: Yes
HDMI Input/Output: 7 / 2 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
HDMI CEC: Yes (SCENE, Device Control)
USB Input: USB Memory, Portable Audio Player
Network Port: Yes
Wi-Fi: Yes (2.4 / 5 GHz)
AirPlay: Yes
Bluetooth: Yes (SBC / AAC)
Front AV Input: USB / Mini Jack
Digital Audio Input/Output: Optical: 2 / 0
Digital Audio Input/Output: Coaxial: 2 / 0
Analog Audio Input/Output: 5 (front 1) / 0:
Phono Input: Yes
Component Video Input/Output: 1 / 0
Composite Video Input/Output: 1 / 0
Preout: 7.2-ch
Headphone Output: 1
Tuner Section:-
FM/AM Tuner: Yes (FM only)
DAB Tuner: Yes (Availability varies by region.)
User Interface:-
On-screen display: Graphical User Inter face
SCENE: SCENE (8 sets)
App Control: Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control: Yes
Remote Control Unit: Yes
Zone Control:-
Zone 2 Audio Output: Line output
Powered Zone: Zone 2
Zone B Output: Yes (HDMI)
RS-232C Interface: Yes
+ 12V Trigger Output: 1
Remote (IR) Input/Output: 1 / 1
Party Mode: Yes
General:-
Standby Power Consumption (IR only): ≤ 0.1W
Auto Power Standby: Yes
ECO mode: Yes
Dimensions (W x H x D): 435 x 171 x 382 mm (with antenna: 435 x 248 x 382 mm); 17-1/8” x 6-3/4” x 15” (with antenna: 17-1/8” x 9-3/4” x 15”)
Weight: 11.0 kg; 24.3 lbs.
