Simple and Flexible, for Ultimate Listening Freedom

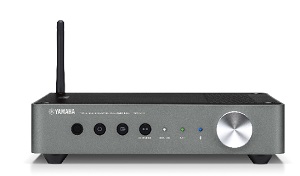

The WXC-50 is a new-concept audio component that goes beyond conventional audio thinking. It let you access a wide variety of audio content such as music from streaming services or stored on a smartphone, and enjoy high quality sound and style thanks to the ability to network with Yamaha’s exclusive MusicCast multi-room audio system. High functionality and performance bring you musical enjoyment just the way you want it.
Use with non-MusicCast amp or receiver to enjoy streaming music or a true MusicCast system
Compatible with all types of music sources and services, such as streaming services
MusicCast App for easy operation. The app lets you control other MusicCast-compatible components
One push play — Pressing any button turns the unit on and initiates playback of the previously selected source
Retro modern and superior quality
48-bit digital volume control is far greater than the input signal bit resolution, achieving high quality control
Supports DSD 5.6 MHz and FLAC / WAV / AIFF 192 kHz / 24-bit for high resolution reproduction
Compact body only 214 mm (8-3/8") wide fits in any convenient location, can be used horizontally or vertically.
Easy installation - Suitable size for 1U rack with a width of 214 mm (8-3/8") and height of 42 mm (1-5/8") (without feet).
Low standby power consumption: 1.8 W
Seamless linkage to Yamaha amp with MAIN IN and Trigger In terminals for control of system power and volume.
Player mode — turn off Pre Amp mode and use the device as a simple network audio player.
Technical Specifications:-
Network section:-
DLNA
Version 1.5
File Format
MP3, WMA, MPEG4, AAC, WAV, FLAC, AIFF, ALAC, DSD
Wi-Fi
Yes
AirPlay
Yes
Bluetooth
Yes (SBC / AAC)
Pure Direct
Yes
Total Harmonic Distortion (20 Hz-20 kHz)
0.003 % (Pre out)
Signal-to-Noise Ratio
112 dB (Opt / Net / USB / Bluetooth in) / 98 dB (AUX in)
Audio In / Out
1 / 1
Digital In / Out
1 (Optical) / 1 (Optical, Coaxial)
USB Input
1
Ethernet
1
Pre Out
1
Subwoofer Out
1
Remote In / Out
1 / 0
Control (Trigger) In / Out
1 / 1
Standby Power Consumption
1.8 W
Dimensions (W x H x D)
215 x 51.5 x 245.9 mm (with antenna: 214 x 123.6 x 245.9 mm); 8-3/8” x 2” x 9-5/8” (with antenna: 8-3/8” x 4-7/8” x 9-5/8”)
Weight
1.44 kg; 3.17 lbs.
